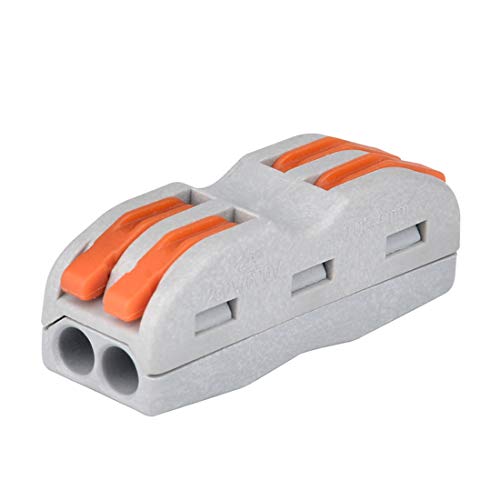

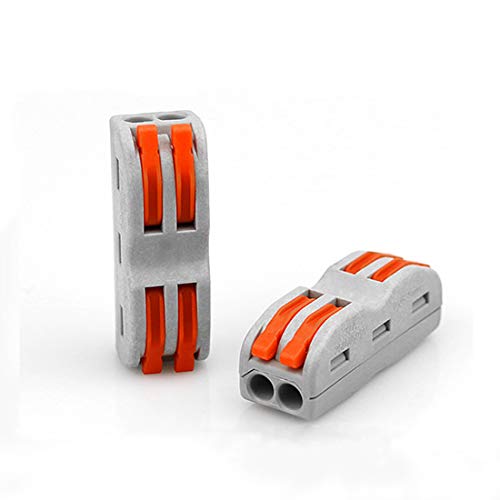

Quick Compact Splice Wire Conductors Cable Clamp Terminal Block Spring Connector-2 Way,4 Port

Quick Compact Splice Wire Conductors Cable Clamp Terminal Block Spring Connector-2 Way,4 Port

Name: Quick Compact Splice Wire Conductors Cable Clamp Terminal Block Spring Connector-2 Way,4 Port
Brand: Gbis
Price: 138.13 PEN
Availability: InStock
Rating: 4.6 (1 reviews)

4.6/5

Product ID: 93141572

Secure Transaction

Frequently Bought Together

Description

Safety: Made of the best high quality PC insulating material. With the advantages of long life, corrosion resistance, high-temperature resistance and aging resistance, it can effectively prevent electrical leakage. So the lever nuts are safer than traditional wire nuts.
Reliability:The spring clamping technology is reliable and does not fall off. Since the tightening force can be adjusted automatically with the thickness of the conductor, the contact of the conductor is reliable and is not affected by the installation technology.

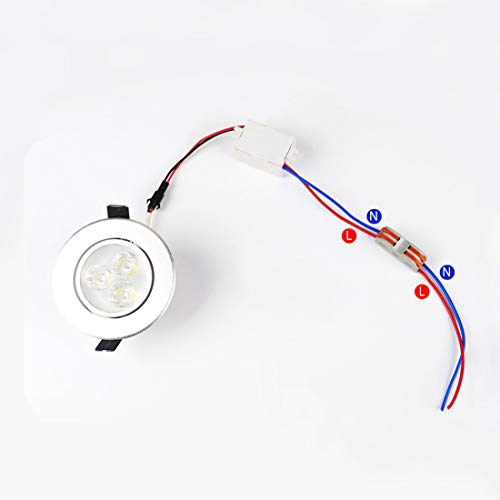

Universal Compatibility:Connect any combination of solid, stranded, and flexible copper wires. The connector is widely used in decoration wiring.
Practicabilityl:The voltage range of the connector is from Solid size 0.08-2.5mm2/28-14AWG, If you need to change other wires, just flip the little lever up and pull out what you need and replace,Which is very practical.

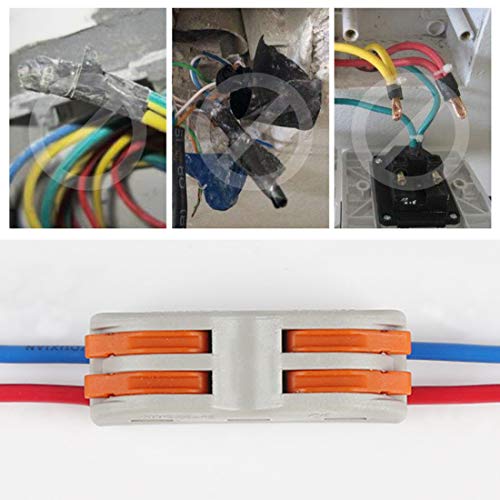

Efficiency:Instead of traditional electrical tape and electrical butt connectors twist-type,technological innovation reduce wiring time by 70%.
›See more product details

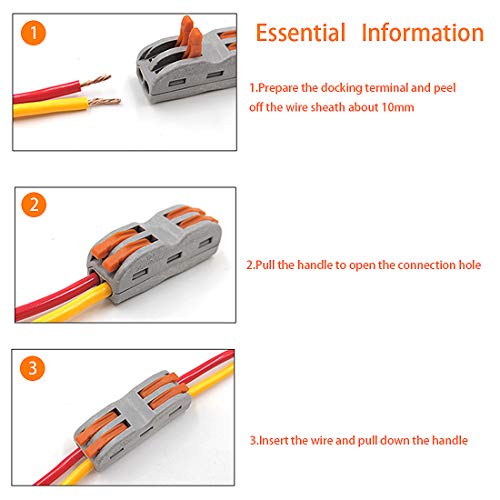

Color:4 Port-12 Connect any combination of solid, stranded, and flexible copper wires faster and more reliably Minimize space consumption in the junction box by 40% compared to 222 Series Operate comfortably and with lower operating forces by using familiar levers Advantage: Push-Wire Structure After the conductor has been stripped of a certain length of insulation skin, the conductor can be easily and completely inserted into the plug-in spring clamping connector without tools. The stainless steel angular reed automatically exerts the required pressure to compress the conductor.The angled pressing edge applies a high fastening force to the wire.The current-carrying strip is made of electrolytic copper and soft tin to ensure the tightness of the contact point between the conductor and it.The curved contact surface of the current carrying strip provides the best contact area for the reliable fastening of the wire. Specification: Strip wire lead to 9-10mm  Terminates 28-12AWG. Rated Voltage: 600V, Rated Current: 32A, Rated power: 7KW Package:PCT-214(12 Pack)
