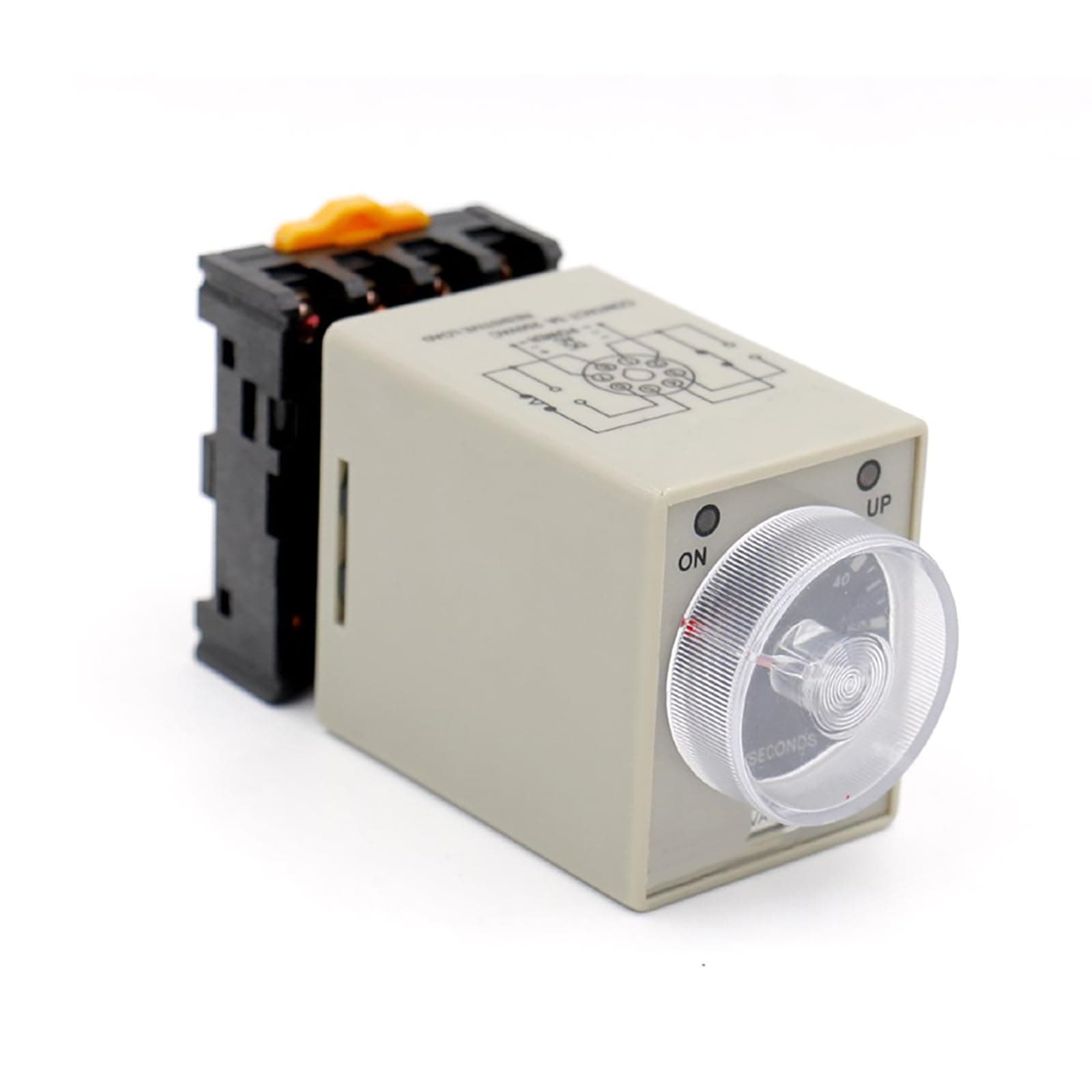

BAOMAIN Timer Delay Relay AC 110V, AH3-3 DPDT 60 Second Range Power-On Delay Timer, 8-Pin Logic with PF083A Socket Base, 5A 250VAC Resistive Load, Dual LED Indicator

Works as described. There are very few options for Delayed ON Relays... worth the money. Printed wiring diagram on the relay is a plus.

I used this small relay as a start up delay for a large transfer relay. In my application, a large relay would switch between shore power to inverter power to power up a residential refrigerator in my RV while driving. I found that my inverter did not like starting up into a load and would shut down. I used this relay to add an 15 second delay between starting up and applying the load thereby allowing the inverter to come up to full power before transferring the load. This solved all my problems. It’s small and very easy to mount the base. Round knob on top of the relay adjusts the delay between 0 and 60 seconds. I mounted this relay on a vertical wall but worried that with a rough road it could bounce the relay out of its socket. I bent a piece of aluminum into an L shape and screwed the small leg of the L to the wall with screws and used double sided VHB tape to the relay body on the long side of the L. It can be removed for service but will prevent the relay from falling out of its base. Unfortunately, there is no clear instructions included with the relay for wiring or how it is configured. After looking up the relay on line, I was finally able to wire it up and it works but the manufacturer would be wise to include instructions for use. Deduct 1 star for that.

Would buy it again

This time delay relay comes with no instructions, but the schematic on the side is almost sufficient to get it working. The one potential gotcha is that one set of SPDT contacts (aka "Form C") is delayed while the other set immediately changes state as soon as power is applied. The time-delayed contacts that are normally open are on pins 8 [common] and 6, while the NC contact is on pin 5. This relayd does come with the necessary octal-base socket which can either be snapped onto DIN rail or else directly mounted with two holes (maybe 6-32 or M3?).

These relays do not work. Do not purchase.

These on delay timers have held up very well. And the price which includes base is an amazing value.

Came ontime looked good, but socket was loose, and one pole of the relay was stuck so i spent hours figuring out why my device did not work properly only to realize (new) part was faulty. Not good quality shame because it looks nice and the price is great if it had worked properly.

With a number of surging electric heats we delayed the load surges too allow double the heaters to start on one standard building timer line. Ya I'm here all night! LOL

Lo utilice para un cuarto frío y me funcionó cumplió con las expectativas

Bien reçu...pass déçu. Merci

it did not work for my project but is ok thanks
