What is the thickness of the box walls?

For the model: 6.22"x3.54"x2.36"(158 x 90 x 60 mm) The thickness of the box wall is 0.12''/3mm. Regards, Le Meng, LLC

Where can I buy a replacement gasket?

Hello customer, sorry that we don't sell gasket separately for now and if you need replacement of gasket please mail us via "contact seller" to let us resolve the issue for you.

what is the distance between the mounting holes on the box? 4.52"x3.54"x2.16"(115 x 90 x 55 mm)

Hello customer, the distance (nearest edge instead of the center of the circle) between two holes is 45.5mm/1.79in, if you need more info please mail us via contact seller so we can send pic directly :)

Any chance i could get a .dwg file of the 4.52x3.54 enclosure to make a pcb design? the locations of the screw holes are imperative.

Hello customer, please mail us via "Contact Seller" for cad file thanks

Desertcart Logo

Join PRO & Unlock Exclusive Perks!

Descargar la aplicación

Fuidamos elementos de

EAU
UK
India
EE.UU
Japón

Servicios al cliente

Sobre nosotros

Soporte al cliente

Nuestras Otras Marcas:Hewyn|Selfship

Reseñas

D**E

Nice little project boxes

Ordered these for a remote connection box I was building. Decent quality, the gasket is'cut to fit' but worked well enough. The included cable glands was a nice touch, although I used my own.

1.07.2025

J**.

Good box, nice mounting tabs

Fit the bill. Decent quality plastic thick enough. Not flimsy.

11.06.2025

J**N

Electrical box

It works great. Make my project easier.

11.04.2025

J**.

Almost Perfect... I expected cheap, but I was SO wrong!

First the positives.Strong, thick walls and mounting flanges.The screws and brass threaded inserts were perfect.Hot melt glue adheres well.They have molded-in circuit board mounts with screw holes; perfect for a quick and professional installation.The negatives.The groove for the seal was too narrow which prevented me from installing the seal at the corners. In fact, it was so narrow I could not install the seal at all. My project is for a dry location so it was no problem for my application but if I had intended these for a wet environment... they would be useless.Additionally, if your project does not miraculously happen the match the existing screw patterns, the molded-in circuit board mounts get in the way, restricting the usable space... making these boxes less than universal. However, they can be removed with a large drill bit so the boxes can be used.Conclusion?Nothing cheap about these... except the price which was half of what I would expect for this level of quality. All things considered, they are the best project box for the price, and I will certainly be a regular customer.

12.05.2025

C**S

Used for Meshtastic case

I made a solar powered Meshtastic enclosure for my vehicle and use this to enclose the Meshtastic device and the battery itself. It’s extremely waterproof. The screen quality is great. The build quality is great and so far I’m extremely happy with it. it’s just small enough to not stand out, but just big enough to fit all the devices I need inside of it.

10.01.2025

K**.

Nice little box for whatever!

Drills easily. Has a nice water tight seal for wet applications!

29.01.2025

J**S

Great for HAM radio!

Used this box to install and waterproof my 49:1 balun. Works great!

23.01.2025

C**D

Well-Made at a Good Price

Hint: A couple dabs of J-B Weld Plastic Bonder quickly and permanently attaches terminal blocks to the interior - no need to drill holes.

25.12.2024

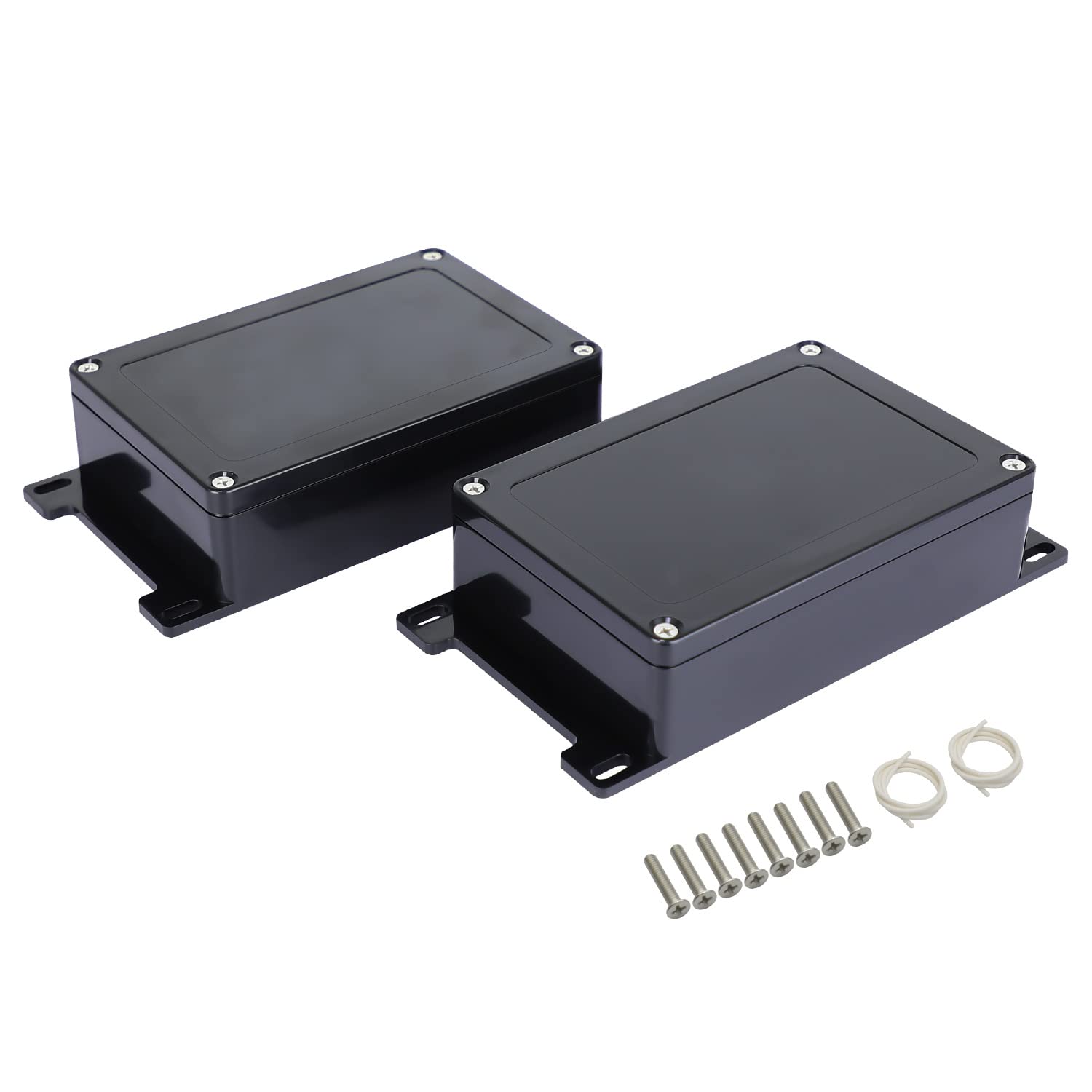

Junction Box IP65 Waterproof Dustproof ABS Plastic Universal Electric Project Enclosure with Fixed Ear Black 5.9x3.9x1.7 inch (2pc)
