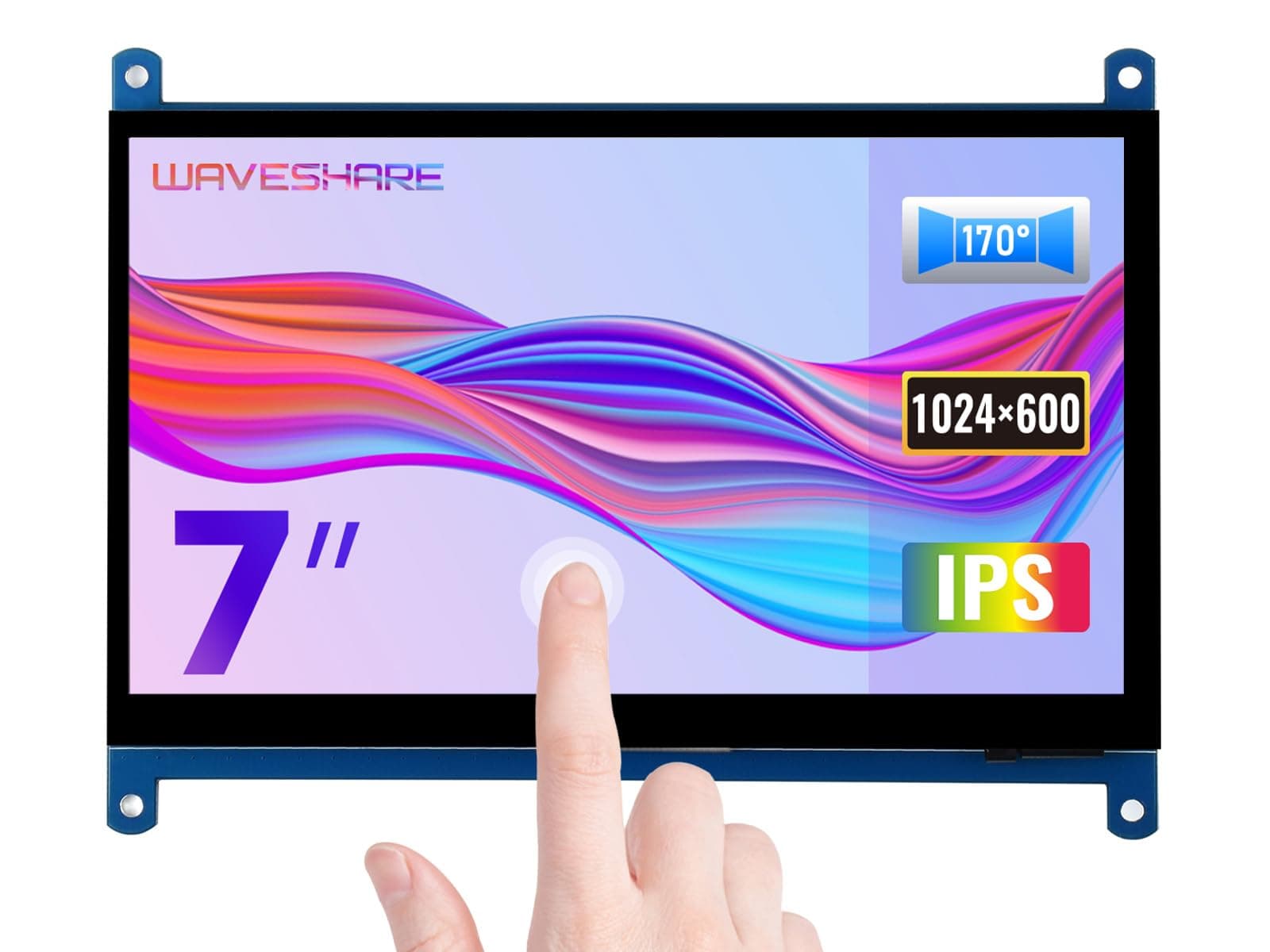

Waveshare 7 inch Display for Raspberry Pi 4 Capacitive Touchscreen HDMI LCD (C) 1024x600 Resolution IPS with 170° View Angle Support All Raspberry Pi/Windows 10/8.1/8/7 PC Monitor
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5Thumbnail 6Thumbnail 7Thumbnail 8Thumbnail 9Thumbnail 10

Waveshare 7 inch Display for Raspberry Pi 4 Capacitive Touchscreen HDMI LCD (C) 1024x600 Resolution IPS with 170° View Angle Support All Raspberry Pi/Windows 10/8.1/8/7 PC Monitor

4.1/5
ID del producto: 48615897
Transacción segura

Detalles

  • Brand
    Waveshare
  • Screen size
    7 Inches
  • Resolution
    SVGA Wide
  • Aspect ratio
    16:9
  • Screen surface description
    Glossy
  • Image contrast ratio
    1000:1
📏7" Screen
🔌HDMI & USB Ports
🖥️1024x600 Res

Descripción

🌊 Dive into the Future of Displays!

  • TOUCH CONTROL - Experience seamless interaction with capacitive touch technology.
  • ENERGY EFFICIENT - Lower power consumption with adjustable backlight settings.
  • DRIVER FREE SETUP - Plug and play with no complicated installations required.
  • WIDE VIEWING ANGLE - Enjoy stunning visuals from any angle with a 170° view.
  • VERSATILE COMPATIBILITY - Effortlessly connects with Raspberry Pi, BB Black, and Windows PCs.

The Waveshare 7 inch Display for Raspberry Pi 4 is a high-resolution IPS touchscreen monitor, boasting a 1024x600 resolution and a 170° viewing angle. It supports a variety of mini PCs and desktop computers, offering a driver-free experience for seamless connectivity. With energy-efficient features and capacitive touch control, this display is perfect for tech enthusiasts and professionals alike.

Large manufacture image 1Large manufacture image 2Large manufacture image 3Large manufacture image 4Large manufacture image 5Large manufacture image 6Large manufacture image 7

Presupuesto

BrandWaveshare
Product Dimensions0.5 x 15 x 10.6 cm; 323 g
Item model number7inch (C)
ManufacturerWaveshare
Series7inch HDMI LCD (C)
ColourBlack
Standing screen display size7 Inches
Screen Resolution1024x600
Resolution1024 x 600
Number of USB 2.0 Ports1
Number of HDMI Ports1
Voltage5 Volts (DC)
Are Batteries IncludedNo
Item Weight323 g
Guaranteed software updates untilunknown

¿Tienes una pregunta? Mira lo que otros preguntaron

What's the maximum refresh rate while connected by usb to a pc? highest i could get was 43fps, but i need 60. any way to increase it?
Where is the windows 10 driver? i have a rev2.2 7 inch model c and windows 10 does not recognise it as a touchscreen.

Reseñas

4.1

Todo de compras verificadas

H**O

Great for Windows IOT

For those who want to run Windows 10 IoT on a Raspberry Pi, this is a great touch screen. Here is what I did to get it to work, and you don't need any drivers. Don't power up your screen until the steps are done as it won't work.1) Set up your WIndows IoT SD card using the IoT dashboard software from Microsoft using your PC2) Navigate to the config file (mine was in drive I) and open it in notepad3) Add/Edit the following lines:max_usb_current=1hdmi_mode=1hdmi_mode=87hdmi_group=2 hdmi_cvt 1024 600 60 6 0 0 04) Connect the HDMI lead5) Connect the usb from the screen to the Pi. NOTE: Make sure the cable is fully wired for data and NOT just a power lead or touchscreen won't work!! (I wasted an entire day doing exactly that)That's it. You can see in the pic Windows IoT has found the touchscreen. I did a test using WIndows Universal App with a button and the click event fired as expected. As the screen is quite large it might be worth, especially for 24/7 projects to connect the screen from a powered USB hub.Very happy with this quality of the screen

W**D

Excellent repeat purchase

These are good screens. There is very little else to say!My first had a frame, but this is really unnecessary for many users. The handy holes in the circuit board make fixing the screen to a light timber background or frame easy, provided you allow a few mm for component clearance at the rear (spacers are provided for this, for example).Use with a Raspberry Pi needs a small tweak to the config file, which is easily done if you follow the Wiki page for the screen at Waveshare's website.Excellent power use; I get minimum 5 hours with Rasbpi 4B and this screen running together.

C**K

Touch LCD user interface

Need touch LCD for a piece of equipment being developed. Looks the part but as yet has not been connected to anything. Will update when it has been fully connected up and used.

D**R

Tested on win 10 & raspberry pi

Liking this screen I purchased this and arrived same day plugged in to raspberry pi and worked straight out of the box just had to edit the config file to get smoother image but apart from that was working straight out the box. I plugged this screen into my win10 laptop and the laptop screen was mirrored to this screen and I was even able to use the touch screen on windows 10

D**S

AMAZING

This is perfect very happy with this product. the screen is HD and comes with a hdmi which is very useful for small projects such as RPI

W**.

Four Stars

Good product, delivered quickly.

H**R

Nice screen, but really bright

I like the screen, the touch works great and without drivers, but to get it to output from a Raspberry Pi you'll need to modify the file at /boot/config.txt and add these lines:max_usb_current=1hdmi_group=2hdmi_mode=87hdmi_cvt 1024 600 60 6 0 0 0hdmi_drive=1My only real problem was the lack of brightness control for the backlight, there's only "on" and "off", the problem there is that the backlight is brighter than the sun and if you're running on a power bank, then you're charging that a lot. In the future I plan to maybe bypass the circuit for the backlight switch and put some resistors in.
