Features:

Input power 2000 W

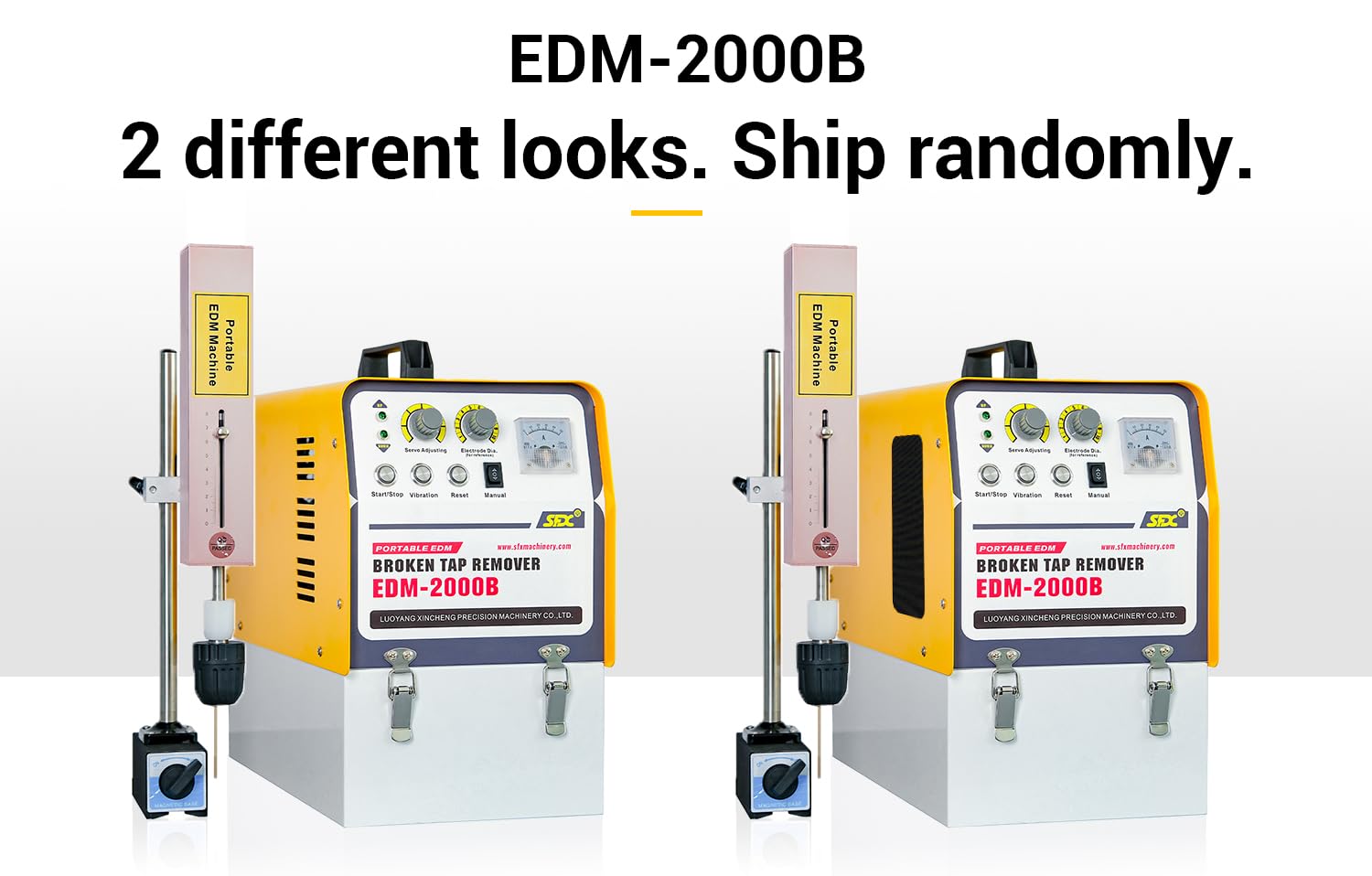

Light, small, portable, and compact design allows the EDM-2000B tap remover to be moved and used anywhere in the shop.
High speed and efficiency at a low cost.
Simple set up and operation allows easy removal of taps anywhere. One key start/stop.
Power source choices 110V/220V,50/60Hz.
Dielectric Machine uses ordinary tap water as dielectric liquid.
Electrodes Uses any brass rod or tube as an electrode.
Small size and magnetic base allow machining even on large work pieces.
Removes taps with no damage or stress to the work piece.
Additional applications include cutting tungsten carbide or any other conductive material.

Machining Functions:

Auto Feed
Depth setting (stops at a specific depth)
Selectable arcing timer
Auto retract
Swiveling work head
Alarm messages: depth arrival, arcing, over-temp.

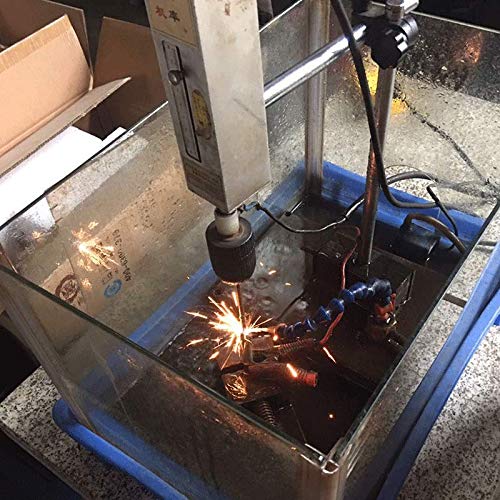

Advantage: One of the big advantages of using the SFX Portable EDM machine is it's portability. Portability allows one to take the machine to the work and do the hole making or stud extraction work in place. Without the Portable EDM, broken bolts or taps may require removal of the engine head or block in a car or truck in order to extract the broken piece. Additionally, the SFX Portable EDM machine will work in any directions, ie, upside down or horizontally, etc. Most EDM machines are not portable and require that the work be taken to the machine.

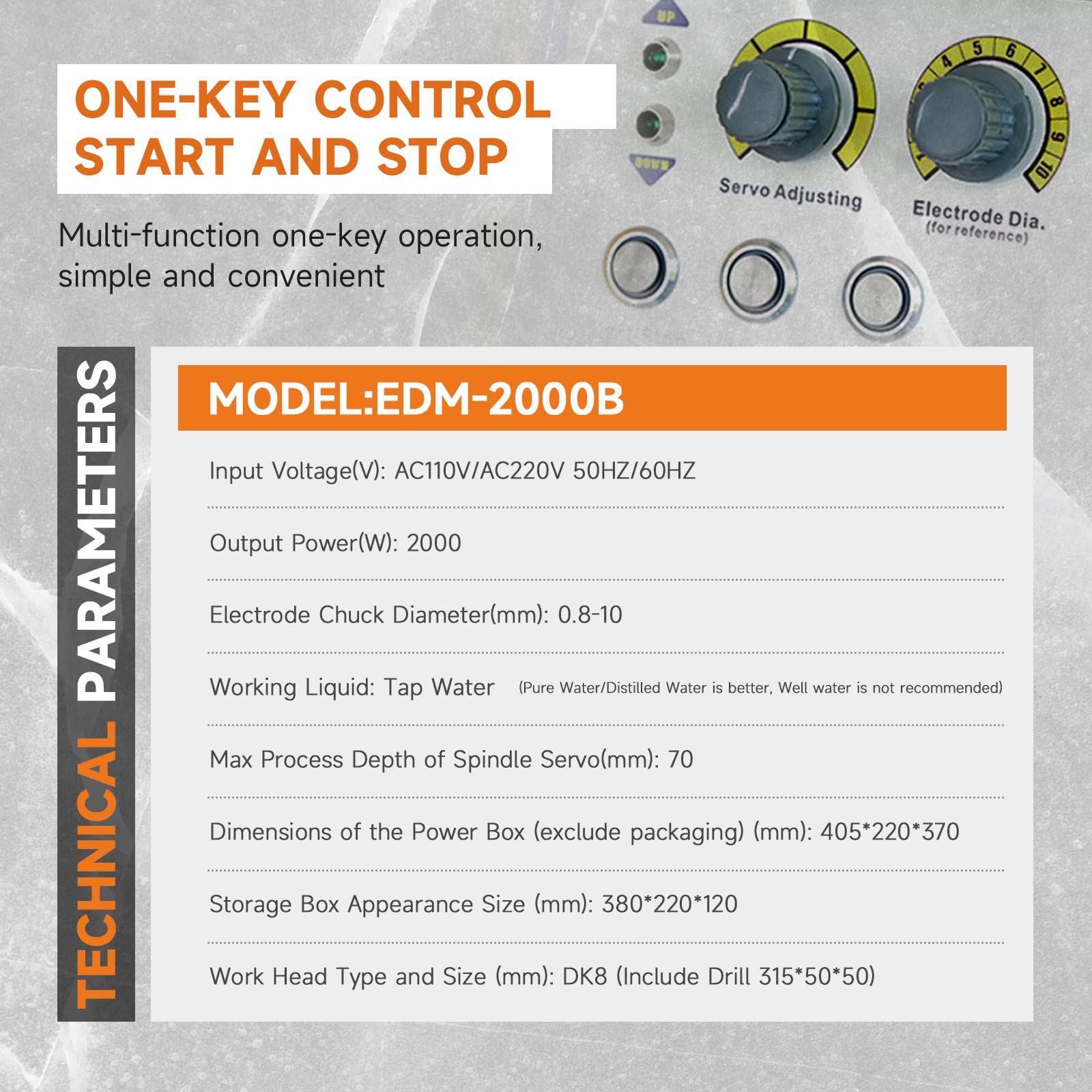

Manufacturer	Luoyang SFX Industrial Technology Co.,Ltd
Item Weight	41.8 pounds
Product Dimensions	16.54 x 8.66 x 14.57 inches
Item model number	EDM-2000B
Size	EDM-2000B
Material	SPCC
Power Source	ac
Voltage	220 Volts
Wattage	2000 watts

EDM-2000B Portable EDM, Broken Tap Remover, Tap Burner, Tap Disintegrator, Spark Eroder,Depth setting, Manual up and down
