⚡ Control your smart projects with power and precision!

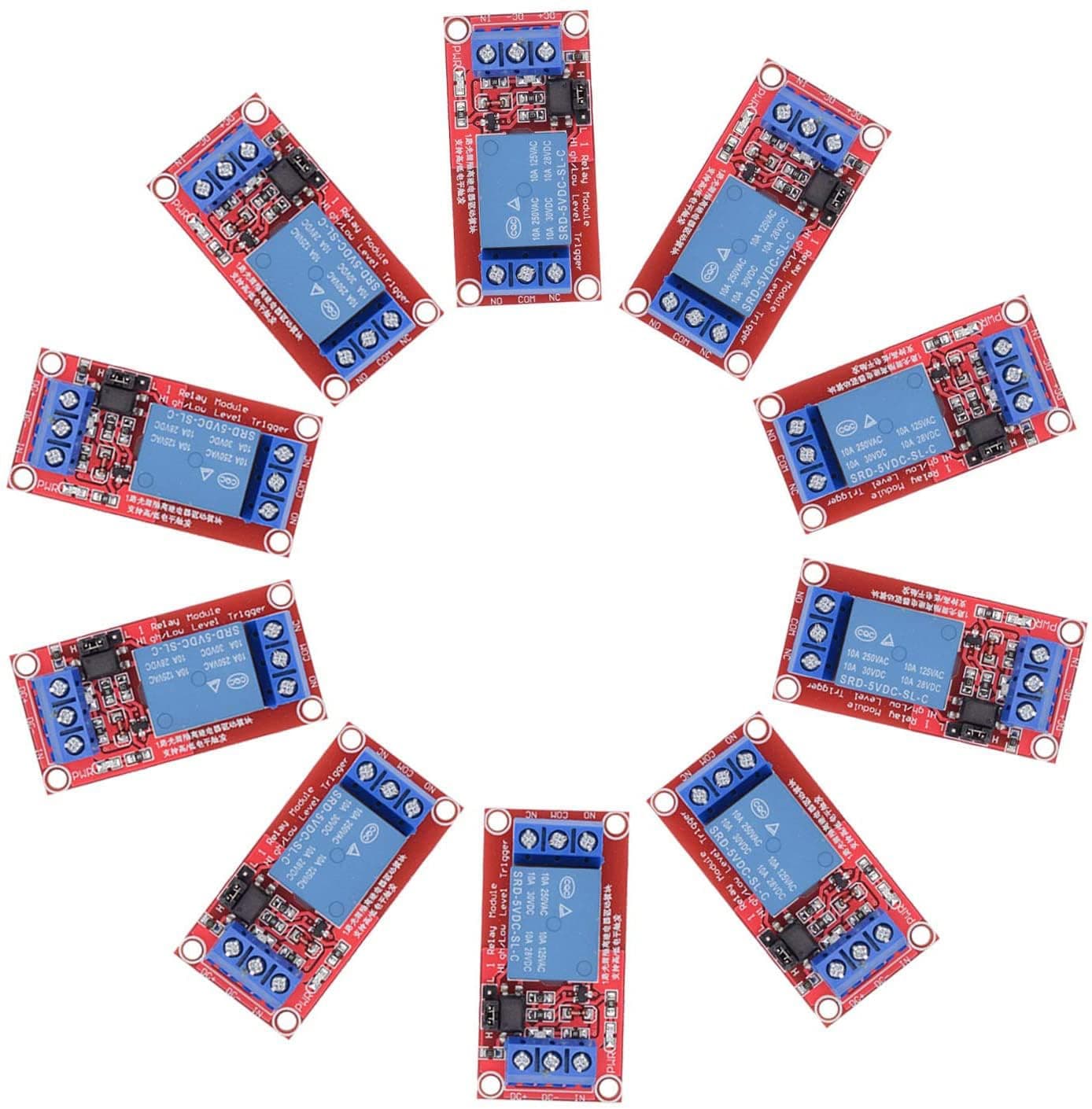

The DC 5V Relay Module pack of 10 features a high-quality 10A relay with optocoupler isolation, supporting both high and low level triggers. Designed for seamless integration with a wide range of microcontrollers, it offers fault-tolerant operation and easy screw-mount installation, making it the go-to choice for reliable, heavy-load switching in professional and DIY automation projects.
Connector Type | Screw |
Contact Type | Normally Open, Normally Closed |
Current Rating | 10 Amps |
Mounting Type | Screw Mount |
Brand | Valefod |
Operation Mode | Automatic |
Coil Voltage | 5 Volts |
Contact Current Rating | 10 Amps |
Maximum Switching Current | 10 Amps |
Maximum Switching Voltage | 250 Volts |
Minimum Switching Voltage | 1.5 Volts |
UPC | 793118392173 |
Manufacturer | Valefod |
Item Weight | 7 ounces |
Package Dimensions | 6.02 x 4.09 x 1.65 inches |
Item model number | VA-0166 |
Manufacturer Part Number | VA-0166 |
S**O
Pairs nicely with an arduino or other microprocessor
It's well thought out. It's easy to control the relay from a low power processor pin - just a couple mA will do the job. You can select whether the relay is triggered by a Vcc or ground signal, and the relay itself is SPDT. It works fine at 5v.The board has a power LED, which is annoying because power drain is an issue with battery circuits, and a separate LED which lights when the relay is energized, which is more acceptable. They can be removed.The relay itself is small and won't switch high currents at high voltages, but you can easily use it to control small lights, little motors or a larger relay.Pleased.
M**K
Versatile little 5V Relay board.
Well documented above, rare for such DIY parts. No soldering required (for those who don't like that).Very versatile, you can reverse the input logic with the jumper. I also like that the output terminal provide both NO (Normally Open) and NC (Normally closed) so it can adapt to your application when you lose power to the boards with NO or NC. I find the green power LED very bright. I might remove it from the board. The red LED is just bright enough in my opinion. Very well packaged, individually wrapped, they look like candies!Works well driving and powering the relay with a Wemos D1 mini with the D6 pin (digital 6). I have flashed the Wemos with Tasmota.WOULD BE A KILLER BOARD IF: it was combined with a transformer and regulator so it could produce 5V from the OUTPUT lines. I mean I'm mostly driving 120V on the relay output side. If the board could take Line+Neutral, then you could power the relay board and the Wemos micro without an external power supply. Essentially, creating a smaller Sonoff.Martin Politick January 2020.
M**N
Quality board
Good price. Fast shipment. Quick delivery.Quality design and features.
T**Y
Reliable and meets expectations.
Perfect for isolating the relay switched load from other circuitry. Works as expected in my various applications.
G**N
They sent me the old style
The photo shows the new style of this great relay but what I received was the old style. You can tell them apart by the color of the jumpers. The new style has black jumpers while the old had yellow jumpers. The old style is a bit larger in size. The important difference for me is the old style triggers around 3 volts when the jumper is set for low trigger. The new style triggers around 2 volts. For some reason the 12 volt new style seems to be unavailable on Amazon at the moment so I’m getting them from China.
S**A
Great for arduino control
These work great for use with the arduino since you can grab the 5V on board the unit to power it up. Using the 3.3V for power will not pick these relays so you have to use the 5V but other then that they are great relays and can run up to 10 amps which is great for certain projects.
S**M
Mistaken Purchase; Still Decent to Have
I bought this accidentally, but it's a great purchase nonetheless. I've used only one so far, and it works fine.
A**6
3.3/5v capable, fast, smooth, and cool!
Fantastic set of 5v relays for the price. Warmth is very manageable. I’ve ran 110v through one for a dehumidifier that basically ran 20 hours a day for a month and was safe to hold my hand for as long as I wanted on it. Been moving more and more to esp devices. And with a recent home assistant setup I have gone nuts with esps. These 5v relays work fantastic and reliable at 3.3 volts as well!
